Kilargo® Architectural Seals

Our ROCKLITE ‘I’ FIRE DOORS has been considerably enhanced by the addition of the KILARGO® ARCHITECTURAL SEALS, a smoke, fire, acoustic & light door seal prevention system which was developed in Australia.

Their solutions are ideal for any commercial building, high-rise complex, health or education facility, and particularly for those in bush-fire prone areas and facilities looking to gain energy efficiencies. From architectural door seals to in tumescent fire dampers, our comprehensive range means we offer complete, integrated and cost-effective solutions for your project.

KP4204TF – Rigid PVC Encased In tumescent Fire & Smoke Seal with 9mm Fins

In tumescent combined fire and smoke door bottom seal.

Application:

Incorporated into fire, smoke and life safety door assemblies to provide resistance against all stages of fire and smoke whilst also providing excellent acoustic properties.

Key Features:

Dual offset fin seals (TF) provides outstanding smoke and sound containment properties.

Provides an ideal alternative for double swing pivot door assemblies, where the smoke seal can remain uninterrupted while the seal body is checked to allow for any door hardware.

Tested on proprietary fire doors providing up to 2 hours fire resistance.

Simple self-adhesive / screw-fix application onto the bottom of the door.

Use With:

Used in conjunction with a Kilargo 4000 Series threshold plate to provide a total door bottom sealing solution.

Materials:

Kilargo high performance in tumescent core with a rigid PVC casing combined with dual electrometric smoke and acoustic fins. Supplied with aggressive self-adhesive backing.

Gap Size:

10mm (dependent upon installation)

Sizes:

Standard lengths 1220mm.

Other lengths to special order.

Standard fin height 9mm

Finish:

Standard Color: Black

Fixing:

The product is fitted to the underside of the door leaf using the aggressive self-adhesive backing tape and simple screw-fixing.

Approval(s)

AS1530/4 fire tests with proprietary fire doors providing up to 2 hours fire resistance.

Complies with the deemed to satisfy provisions of BCA C3.4 limiting smoke at 200°C for 30 minutes (when fitted to compliant door leaf).

Independent tests have been conducted demonstrating over 100,000 open and close cycles without significant wear.

Specifications:

Kilargo KP4204TF combined in tumescent fire, smoke and acoustic seal fitted to the underside of the door bottom.

KG1612BW – Self-Adhesive In tumescent Fire Seal with Offset Electrometric Smoke Seal

Graphite in tumescent combined fire, smoke and acoustic seal.

Application:

This hybrid, in tumescent fire & smoke seal is simply fitted onto the rebate of a door frame perimeter to provide resistance against fire, smoke, sound, draughts, dust and light.

Key Features:

Tested on proprietary fire doors for up to 2 hours fire resistance.

Fits quickly and easily without removal of the door.

Provides an excellent acoustic & smoke seal across all temperatures.

Offers an outstanding acoustic performance.

Simple self-adhesive application onto the door frame.

Strategically located in the impact free zone of the opening.

Use With:

Used in conjunction with a Kilargo door bottom solution such as the IS8010si automatic door bottom or KP3504TF seal to provide a total door sealing system.

Materials:

Kilargo high performance graphite based in tumescent core with PVC skin combined with an electrometric sealing blade. Supplied with aggressive self-adhesive backing tape on both flanges of the carrier.

Gap Size:

Minimum 2mm – Maximum 3mm

Sizes:

Standard lengths 3000mm

Finish:

Standard Colors: Black, White

Fixing:

The product is fitted along the rebate of the door frame perimeter and applied using the integral self-adhesive backing tape.

Approval(s)

AS1530/4 fire tests with proprietary fire doors providing up to 2 hours fire resistance.

Specifications:

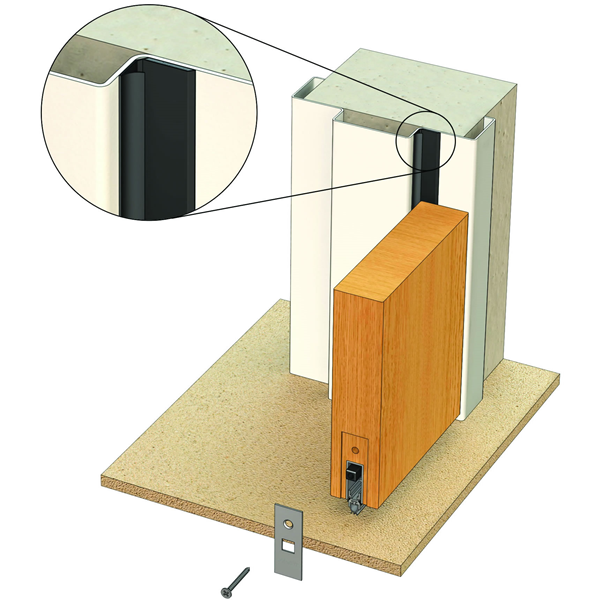

Kilargo KG1612BW fitted onto the rebate of the door frame.

KG1202XX50 – Flexible, Self-Adhesive, In tumescent Fire Seal

Flexible, graphite based in tumescent fire seals.

Application:

Applied to the perimeter of fire door assemblies. When exposed to fire conditions, these strip seals expand to many times their original volume, sealing off the door perimeter to prevent the passage of hot smoke and other toxic gases.

Key Features:

Easy retrofit installation.

Simple self-adhesive application onto the door frame.

Flexible seal is supplied in coils to minimize wastage when cutting lengths to size.

Ideal for fire engineered solutions where extra fire protection is required.

Use With:

Used in conjunction with a Kilargo door bottom solution, such as the IS8010si automatic door bottom seal or KP4204TF in tumescent sweep type seal to provide a total door sealing solution.

Materials:

Kilargo high performance, graphite based, in tumescent core, supplied with aggressive self-adhesive backing tape.

Gap Size:

Nominal 3mm perimeter gaps.

Sizes:

12mm x 2mm

Standard Lengths 50 meter coils

Finish:

Standard Color: Black

Fixing:

This product can be simply retrofitted to a steel frame, or set into a mortised groove in the door frame or the edge of the door leaf, using the aggressive self-adhesive backing tape.

Approval(s):

AS1530/4 fire tests with proprietary fire doors, providing up to 2 hours fire resistance.

Specifications:

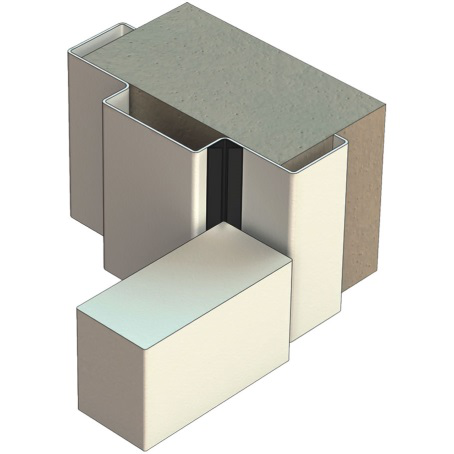

Kilargo KG1202/KG1602 in tumescent fire seal fitted around the perimeter of the door frame.

IS1212 – Self-Adhesive Smoke & Acoustic Perimeter Seal

These self-adhesive perimeter seals are fitted in the rebate of a door frame to contain smoke, sound, draughts, dust and light. Strategically located in the impact free zone, the seal adheres to the frame quickly and easily without having to remove the door.

The seal consists of a semi-rigid flame retardant PVC carrier combined with twin electrometric sealing blades. An aggressive self-adhesive backing tape is situated on both sides of the carrier.

NB. To ensure proper adhesion, contact surfaces must be clean & any paint well-cured.

Gap Size:

Required door clearance 2-3mm

Size:

Standard Lengths: 3000mm

Standard Colors:

Black

Approval(s):

Fire tested in accordance with AS1530 Part 4

Medium temperature smoke leakage tests to AS1530 Part 7

Acoustic ratings to AS1191 and ISO140.3

Durability tests demonstrating over 100,000 open and close cycles

IS1515 – Self-Adhesive Smoke & Acoustic Perimeter Seal

These self-adhesive perimeter seals are fitted in the rebate of a door frame to contain smoke, sound, draughts, dust and light. Strategically located in the impact free zone, the seal adheres to the frame quickly and easily without having to remove the door.

The seal consists of a semi-rigid flame retardant PVC carrier combined with twin electrometric sealing blades. An aggressive self-adhesive backing tape is situated on both sides of the carrier.

NB. To ensure proper adhesion, contact surfaces must be clean & any paint well-cured.

Gap Size:

Required door clearance 3mm

Sizes:

Standard Lengths: 3000mm

Standard Colors:

Black

Approval(s):

Fire tested in accordance with AS1530 Part 4

Medium temperature smoke leakage tests to AS1530 Part 7

Acoustic ratings to AS1191 and ISO140.3

Durability tests demonstrating over 100,000 open and close cycles

IS8210si – Bottom-Fixed Swing Type Seal

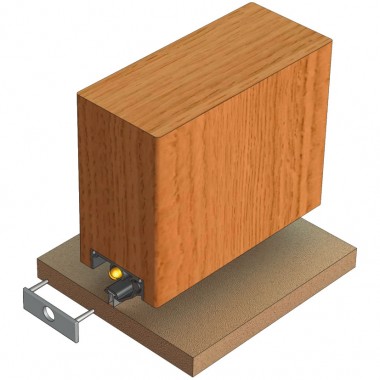

A rebated automatic door bottom seal for single action doors which is spring loaded to swing clear of the floor as soon as the door is opened by a few millimeters. The unique “swing-seal” operates automatically by pressure against the door jamb on its adjustable strike button.

The seal is mounted into a 10mm deep x 31mm wide machined groove along the underside of the door. Aesthetic, nylon push-fit end plates ensure longevity of the seal mechanism.

Standard lengths:

620mm

720mm

820mm

920mm

1020mm

1220mm

IS8210si Maximum Allowable Cut-Back

Sizes:

620mm seal cuts to 520mm

720mm seal cuts to 620mm

820mm seal cuts to 720mm

920mm seal cuts to 820mm

1,020mm seal cuts to 920mm

1220mm seal cuts to 1,020mm (*Seals can be cut on site for exact dimension)

Standard Colors:

Silver anodized aluminum with grey silicone rubber gasket and grey nylon push-fit end plates.

IFD-D Series – Air Transfer / Pressure Relief Grilles for Proprietary Fire Door Assemblies

Suggested Specifications:

Ventilation dampers for fire doors shall be Kilargo IFD-D fully tested to AS 1530.4 to comply with the requirements AS/NZS 1905.1. Fire dampers must allow bi-directional airflow and have no moving parts.

Features:

Innovative, slimline design

Suitable for both Mini & Maxi fire doors

All in one Kit includes 1 x IFD, 2 x Cover Grilles, Kilargo Mastic & fixings

No moving parts result in a robust trouble free installation which will not rattle or vibrate

Easy installation in New or Existing doors

Technical Data:

Integrity Fire Rating – 2 hours

Insulation Fire Rating – 1/2 hour

Sizes available: 450 x 450 mm

Suits nominal 37mm to 47mm thick Fire Doors

Grille features decorative finish suitable for INTERNAL USE ONLY.

Aluminum cover grilles are also available for more aggressive environments to special order.

To view more on KILARGO® products, please click on the following link: http://www.kilargo.com.au/

For any other KILARGO® products please contact our offices.
