Transformer Room Doors
ROCKLITE® Transformer Room Doors and Louver Units are made from 1.6mm mild steel; our doors are secure and durable. These doors & frames can also be made from Galvanised steel for coastal conditions, as per customer requirements.
Hinges:
The doors are fitted with 3 x heavy duty brass hinges per leaf, depending on door size and customer requirements.
Door Finishes:
The doors are painted with a red oxide primer, galvanized doors are cleaned with degreasing solution. We do not manufacture doors in hot-
Ironmongery:
Our Transformer Room Doors are fitted with a Pull Handle, Padlatch and Barrel Bolts on double doors. We can also fit a Quick Release Mechanism onto the doors, as per customer requirements.

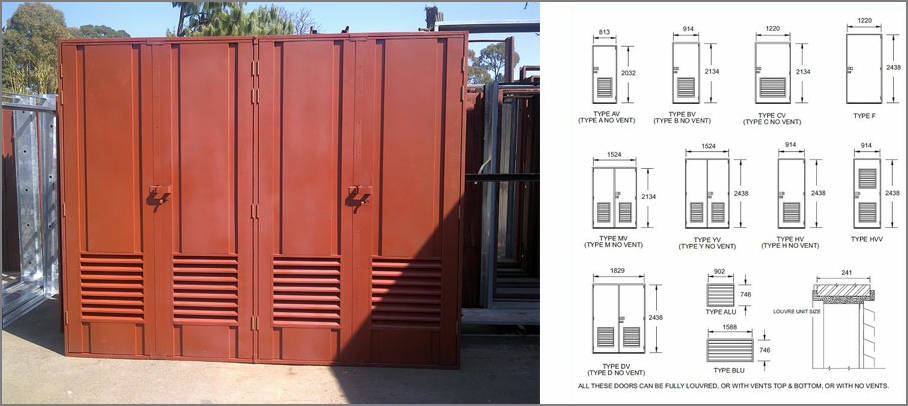

Standard Transformer Room Door Sizes |
|
|
DOOR TYPE A – 815 x 2032 x 230mm |
DOOR TYPE B – 915 x 2135 x 230mm |
|
Type A (no vents) |
Type B (no vents) |
|
Type AV (1 vent per leaf) |
Type BV (1 vent per leaf) |
|
Type AVV (2 vents per leaf) |
Type BVV (2 vents per leaf) |
|
Type AVA (fully louvred) |
Type BVA (fully louvred) |
|
DOOR TYPE H – 915 x 2440 x 230mm |
DOOR TYPE C – 1220 x 2135 x 230mm |
|
Type H (no vents) |
Type C (no vents) |
|
Type HV (1 vent per leaf) |
Type CV (1 vent per leaf) |
|
Type HVV (2 vents per leaf) |
Type CVV (2 vents per leaf) |
|
Type HVA (fully louvred) |
Type CVA (fully louvred) |
|
DOOR TYPE F – 1220 x 2440 x 230mm |
DOOR TYPE M – 1525 x 2135 x 230mm |
|
Type F (no vents) |
Type M (no vents) |
|
Type FV (1 vent per leaf) |
Type MV (1 vent per leaf) |
|
Type FVV (2 vents per leaf) |
Type MVV (2 vents per leaf) |
|
Type FVA (fully louvred) |
Type MVA (fully louvred) |
|
DOOR TYPE Y – 1525 x 2440 x 230mm |
DOOR TYPE G – 1830 x 2135 x 230mm |
|
Type Y (no vents) |
Type G (no vents) |
|
Type YV (1 vent per leaf) |
Type GV (1 vent per leaf) |
|
Type YVV (2 vents per leaf) |
Type GVV (2 vents per leaf) |
|
Type YVA (fully louvred) |
Type GVA (fully louvred) |
|
DOOR TYPE D – 1830 x 2440 x 230mm |
LOUVRE UNITS |
|
Type D (no vents) |
ALU - |
|
Type DV (1 vent per leaf) |
BLU - |
|
Type DVV (2 vents per leaf) |
LC Louvre Panels |
|
Type DVA (fully louvred) |
Vermin Proofing |
